1.For equilibrium, the net force acting on the body is zero.
a) True
b) False
Explanation: The equilibrium is only attained if the net force on the body tends to be equal to zero. Thus the forces cancel out. If this happens there is no motion of the body along with any direction and hence the body is said to be in equilibrium. The body here is a rigid body
2. For equilibrium, the net moment acting on the body by various forces is zero.
a) True
b) False
Explanation: The equilibrium is only attained if the net moment on the body tends to be equal to zero. Thus the moments caused by different forces cancel out. If this happens there is no motion of the body along with any direction and hence the body is said to be in equilibrium. The body here is a rigid body
3. The net moment of the body is zero that means the distance between the force and the rotational axis is zero.
a) The first part of the statement is false and other part is true
b) The first part of the statement is false and other part is false too
c) The first part of the statement is true and other part is false
d) The first part of the statement is true and other part is true too
Explanation: The net moment of the body is zero that doesn’t mean that the distance between the force and the rotational axis is zero. This means moments caused by different forces cancels out. If this happens there is no motion of the body along with any direction and hence the body is said to be in equilibrium
4. The net force of the body is zero that means the force are not being applied to the body at all and hence the body is in equilibrium.
a) The first part of the statement is false and other part is true
b) The first part of the statement is false and other part is false too
c) The first part of the statement is true and other part is false
d) The first part of the statement is true and other part is true too
Explanation: The net force of the body is zero that doesn’t mean that the force are not being applied to the body at all and hence the body is in equilibrium. The equilibrium is only attained if the net force on the body tends to be equal to zero. Thus the forces cancels out. If this happens there is no motion of the body along any direction and hence the body is said to be in equilibrium.
5. Which of the following is correct?
a) The application of the conditions of the equilibrium of the body is valid only in the 2D
b) The application of the conditions of the equilibrium of the body is valid only in the 3D
c) The application of the conditions of the equilibrium of the body is valid only in the 1D
d) The application of the conditions of the equilibrium of the body is valid throughout
Explanation: The application of the conditions of the equilibrium of the body is valid throughout. This means that the conditions are irrespective of the dimensions. The conditions are the basic rules that define the equilibrium of the body and thus are applicable in any dimension of the real axis.
6. For the conditions of the equilibrium of the body, i.e. the rigid body only the external forces defines the equilibrium. Because the internal forces cancels out so not to be considered.
a) The first part of the statement is false and other part is true
b) The first part of the statement is false and other part is false too
c) The first part of the statement is true and other part is false
d) The first part of the statement is true and other part is true too
Explanation: The application of the internal forces does affect the conditions of the equilibrium of the body. Not only the external but the internal forces that are developed by the sake of external forces does develop a tending effect on the equilibrium of the body. Thus the internal forces doesn’t cancels out
7. Which of the following needs to zero for the perfect equilibrium?
a) ∑F=0, ∑M=0 and ∑θ = 0
b) ∑F=0, ∑M≠0 and ∑θ = 0
c) ∑F≠0, ∑M=0 and ∑θ = 0
d) ∑F=0, ∑M=0 and ∑θ≠0
Explanation: The summation of the forces needs to be zero. So does the summation of the moments need to zero. But talking about the angles, they not needed to zero. But the forces which are acting at particular angles, must need to be equal to zero. The basic need of the forces to make the body in equilibrium

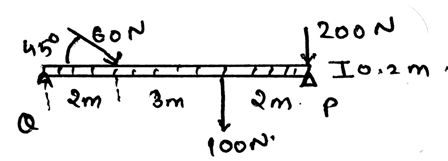

8. Determine the vertical components of the reaction on the beam caused by the pin at P. The force 60N is multiplied by 10 and then is applied.
a) 405N
b) 445N
c) 45N
d) 40N
Explanation: 405N
9. Free body diagrams don’t play any role in making the calculations on the conditions of the equilibrium of the body.
a) True
b) False
Explanation: The free body diagrams does play an important role in the formation of the conditions of the equilibrium of the rigid body. As the net forces are zero, the fbd helps us to take the measure of the same. That is to see whether the summation is really zero or not.
10. The net forces of acting on the body need to be zero. This is also applicable for the simply supported beams. This means that the support reaction is also counted in making the net force zero.
a) True
b) False
Explanation: The support reactions of the beam is also counted in the making of the forces zero. As far as the net force is concerned the support reaction does affect the conditions for the equilibrium of the body. Hence one needs to take care of the support reactions of the beam too.
